Bess System 233LS

Genius Stack 250-233LS

BESS Liquid-Cooled

Home Product Liquid-cooled BESS

Power You Can Trust

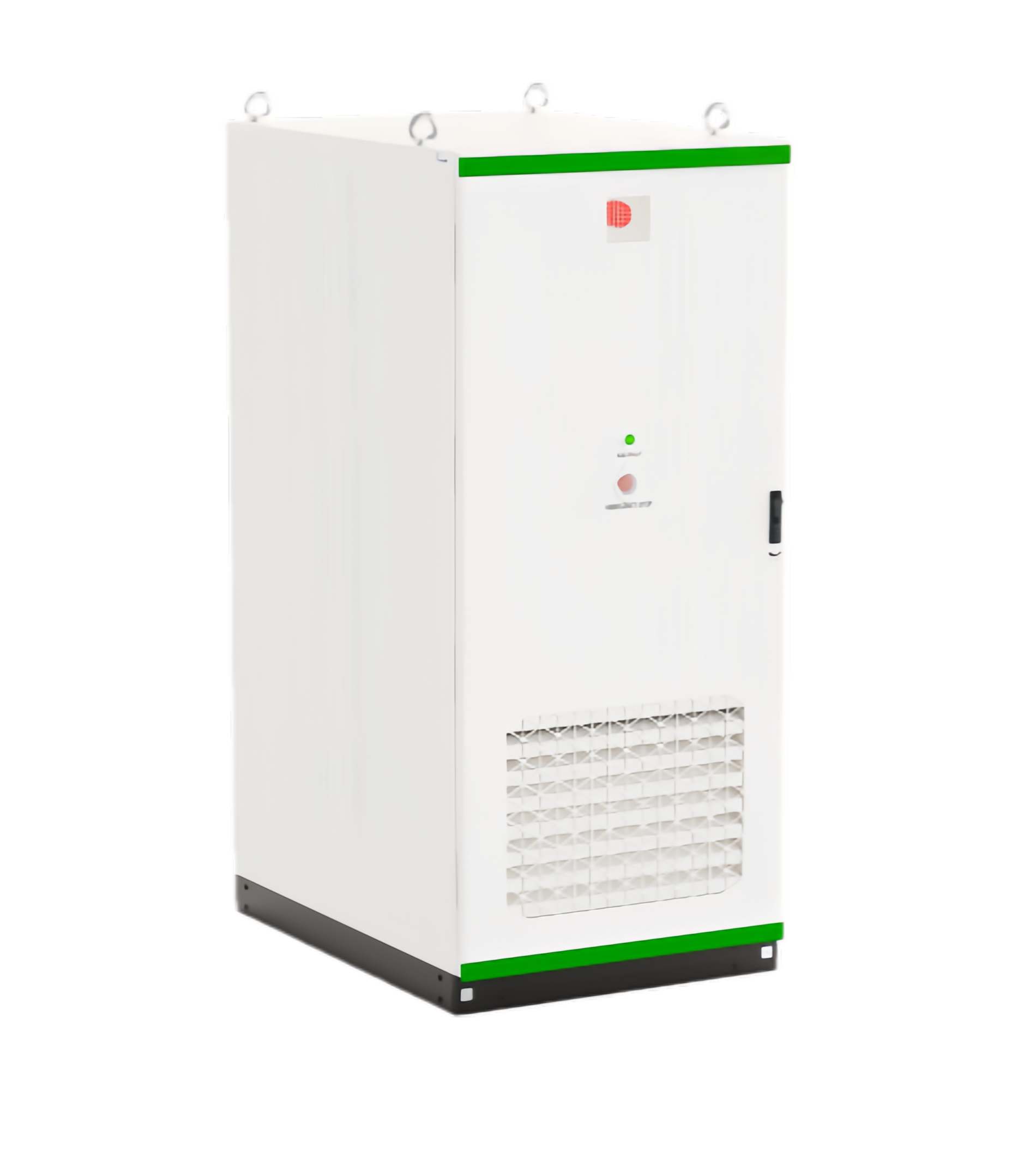

Genius Stack 125-261LS combines efficiency, safety, and simplicity, giving you energy storage that’s reliable and hassle-free.

Features

Long Cycle Life

6000-cycle-life safety LFP battery.

Optimized Thermal Management

By means of heat simulation and cooling tube design optimization to support cell difference below 3 °C.

Redundant Control System

RTOS and Linux dual-system redundant control to prevent the shutdown of control system.

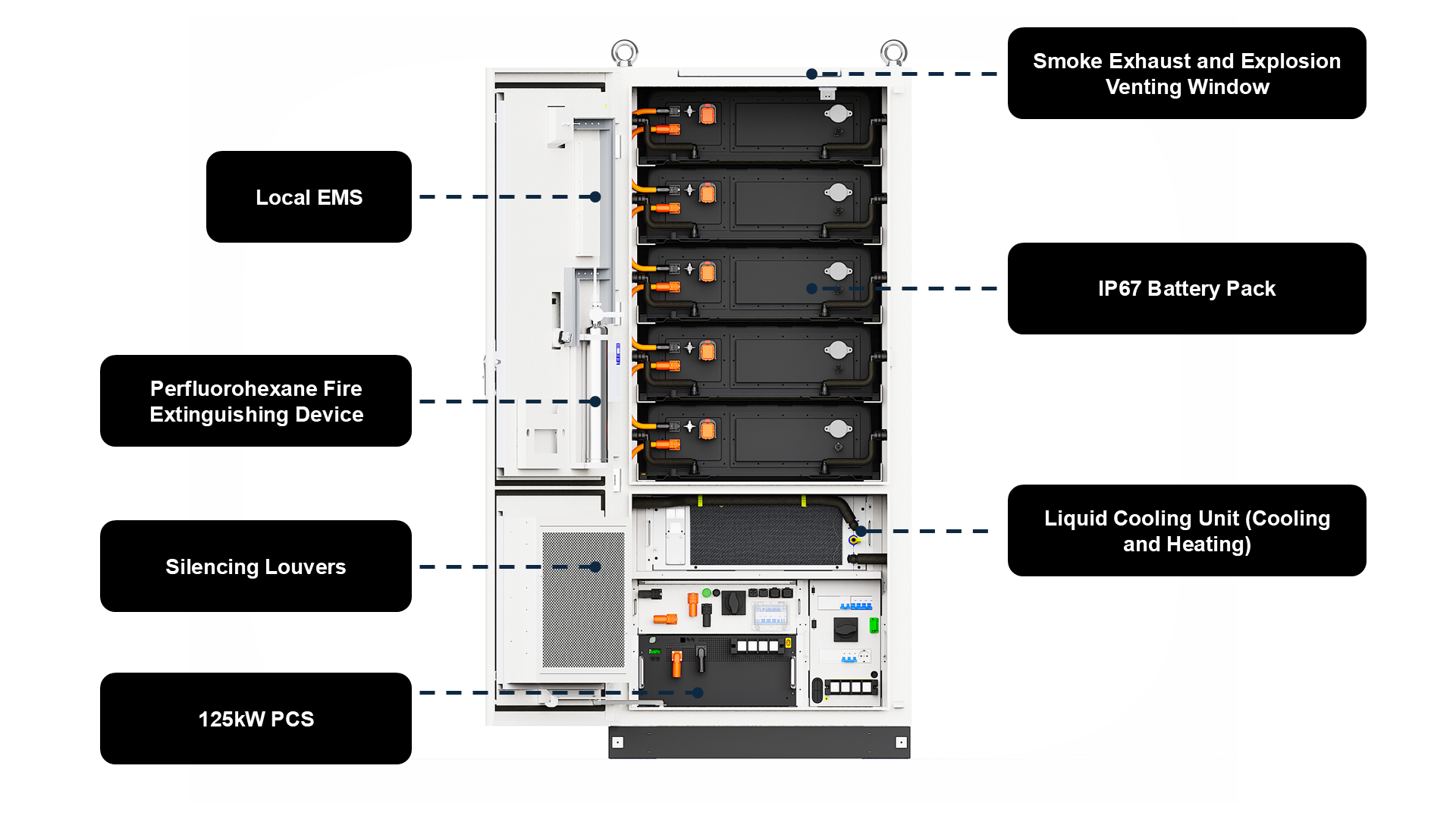

Advanced Fire Safety

Targeted cell-level fire suppression design to minimize fire risk from cell to system.

Flexible Cabinet Operation

Compatible with up to 10 battery cabinets in parallel operation.

Multi-Scenario Support

Supports on- and off-grid multi-scenario applications.

Remote Monitoring & Maintenance

Remote Monitoring and Maintenance Platform for preventive maintenance, online system diagnosis, and OTA.

Technical Specifications

Rated Power	250 kW
Output Voltage Range	400 V / 230 V (-15 %~15 %)
Grid Frequency	50Hz / 60Hz
Power Factor	-1 ~ 1
Wiring Method	Three - phase Four - wire + PE
Rated Capacity	233kWh
Maximum Output Power	137.5kW ( Long - Term )
Operating Temperature	-30～55°C( >45°C derating ）
Protection Level	IP55
Cooling Method	Liquid Cooling
Total Efficiency	> 87.5 %
Fire Protection Method	Cell-level point-to-point perfluoroketone fire extinguishing + water firefighting (energy storage cabinet)

Dimensions (WDH)	100014002280 mm
Weight	2350 kG

Data Sheet Certifications
