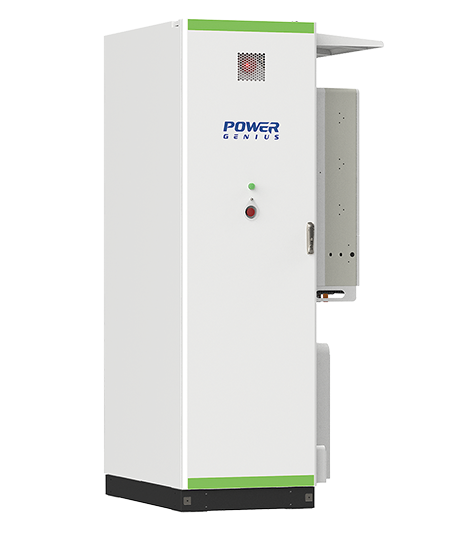

Genius Stack 56-112AS

BESS Air-Cooled

Home Product Air-cooled BESS

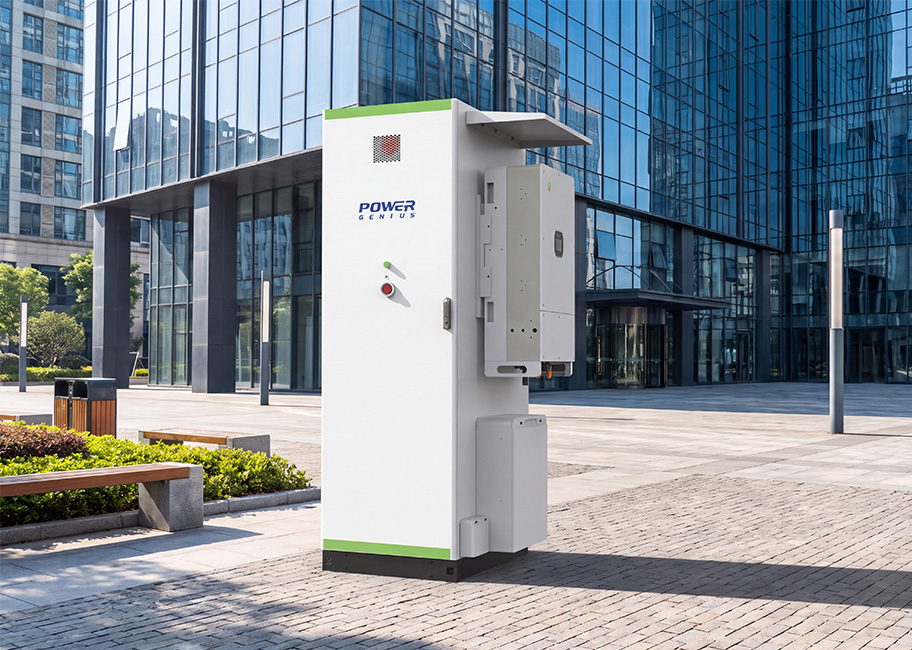

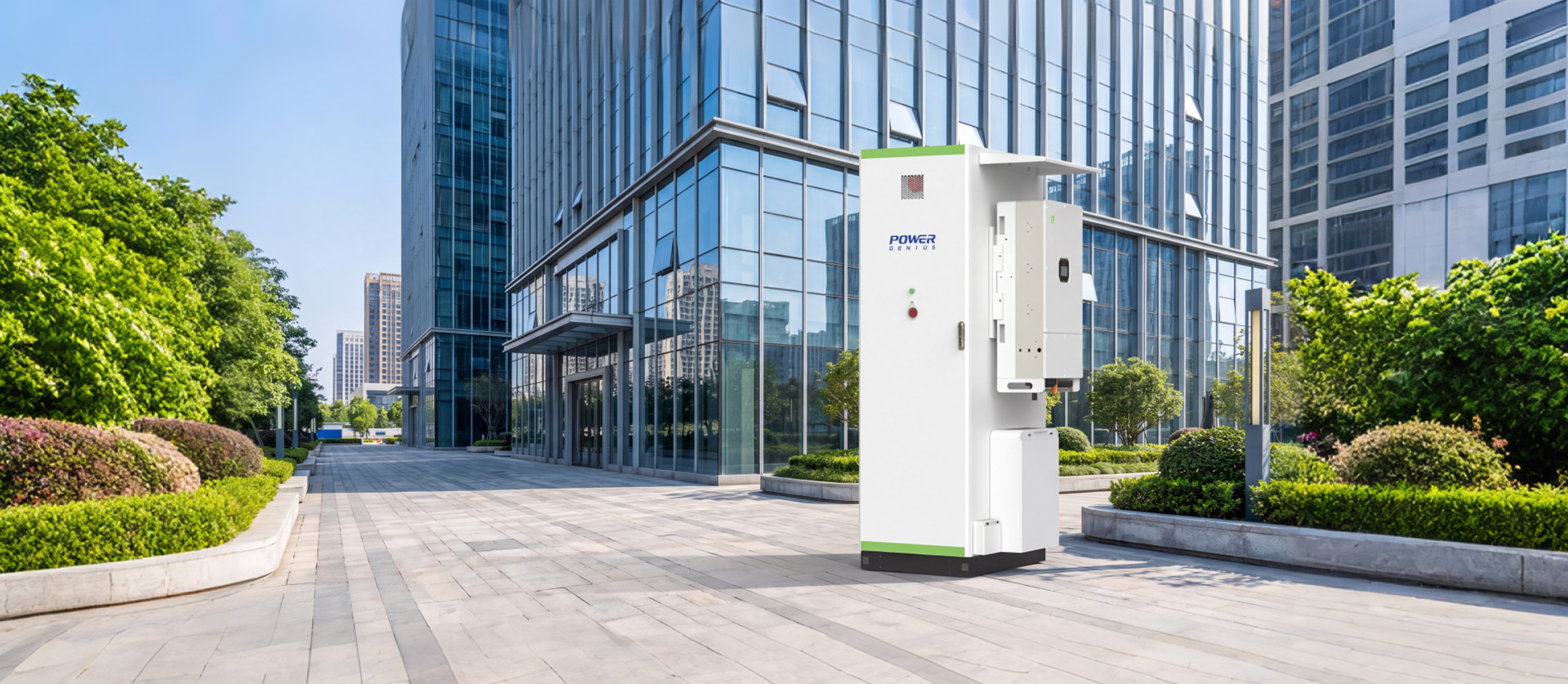

Brand New Outdoor PV-Diesel-Storage System

Featured deep integration of photovoltaic (PV) generation, LFP battery storage, Power Conversion Systems (PCS), Battery Management Systems (BMS), Energy Management Systems (EMS), and diesel generator interfaces.

Features

Intelligent Hybrid Energy

Featuring an external hybrid inverter design and superior system performance.

Intelligent Thermal Management

Intelligent fan control to support cell difference below 6 °C.

Redundant Control System

RTOS and Linux dual-system redundant control to prevent the shutdown of control system.

Advanced Fire Safety

Targeted cell-level fire suppression design to minimize fire risk from cell to system.

Flexible Cabinet Operation

Compatible with up to 10 battery cabinets in parallel operation and supports independent use of 1 to 2 cabinets.

Remote Maintenance

Remote Monitoring and Maintenance Platform for preventive maintenance, online system diagnosis, and OTA.

Technical Specifications

Rated Power	56 kW
Output Voltage Range	380V/400V/415V
Grid Frequency	50Hz / 60Hz
Power Factor	-1 ~ 1
Wiring Method	Three - phase Four - wire + PE
Rated Capacity	112kWh
Maximum Output Power	56kW ( Long - Term )
Operating Temperature	-30～55°C( >45°C derating ）
Protection Leve	IP55
Cooling Method	Industrial Air Conditioning + Forced Air Cooling
Total Efficiency	> 87 %
Fire Protection Method	Cell-level point-to-point perfluoroketone fire extinguishing + water firefighting (energy storage cabinet)
Certification	IEC 62619 , IEC60730-1 Appendix H, IEC61000-6-2 & IEC61000-6-4 , IEC 62477-1 , UN38.3 , EN 50549-1(PCS) , C10/11(PCS) , IEC61439-1 & IEC61439-2( Junction Cabinet )
Dimensions (WDH)	100014002350mm
Weight	1500KG
